Reviewer Walkthrough

A guided tour of the CMS Claims Comparison Pipeline — what to look at, in what order, and why it matters.

Hosted Version

A live, read-only version of the reports and documentation is available — no setup required:

Downloads

Bundle Contents Link
AI Assistant Code, docs, report, AI chat (no data) cmsdata-assessment_ai-assistant.zip
Full Code, docs, report, AI chat + data cmsdata-assessment_full.zip

0. Data Setup (before running anything)

The pipeline requires CMS data files on disk. See README.md → Data Setup for full details, but in short:

Old system data (required): Download CMS DE-SynPUF Sample 1 — 3 Beneficiary Summary ZIPs + 2 Carrier Claims ZIPs. Place them in data/original_downloads/ (auto-extracted) or extract CSVs directly into data/old_system/.

New system data (for comparison): Unzip the assessment-provided New Claims System Outputs.zip into data/new_system/.

data/
├── original_downloads/   # Place ZIPs here (auto-extracted by Step 1)
├── old_system/           # Or place extracted CSVs here directly (5 files)
├── new_system/           # New system CSVs for comparison
└── database/             # Auto-created by pipeline

The -v "$(pwd)/data:/app/data" flag in the Docker commands below mounts your local data/ folder into the container so the pipeline can read your CSV files.

1. Running the Pipeline (Terminal)

The pipeline runs end-to-end with a single command. No configuration needed — it auto-discovers CSV files by reading their headers.

# Local
python -m src.main --new-data data/new_system/

# Or Docker (fully containerized, no Python install required)
docker build -t cms-pipeline .
docker run --rm -p 8888:8888 \
  -v "$(pwd)/data:/app/data" \
  -v "$(pwd)/reports:/app/reports" \
  cms-pipeline

All 6 pipeline steps execute in sequence with gate logic — Steps 1-2 halt early on bad input before expensive processing begins.

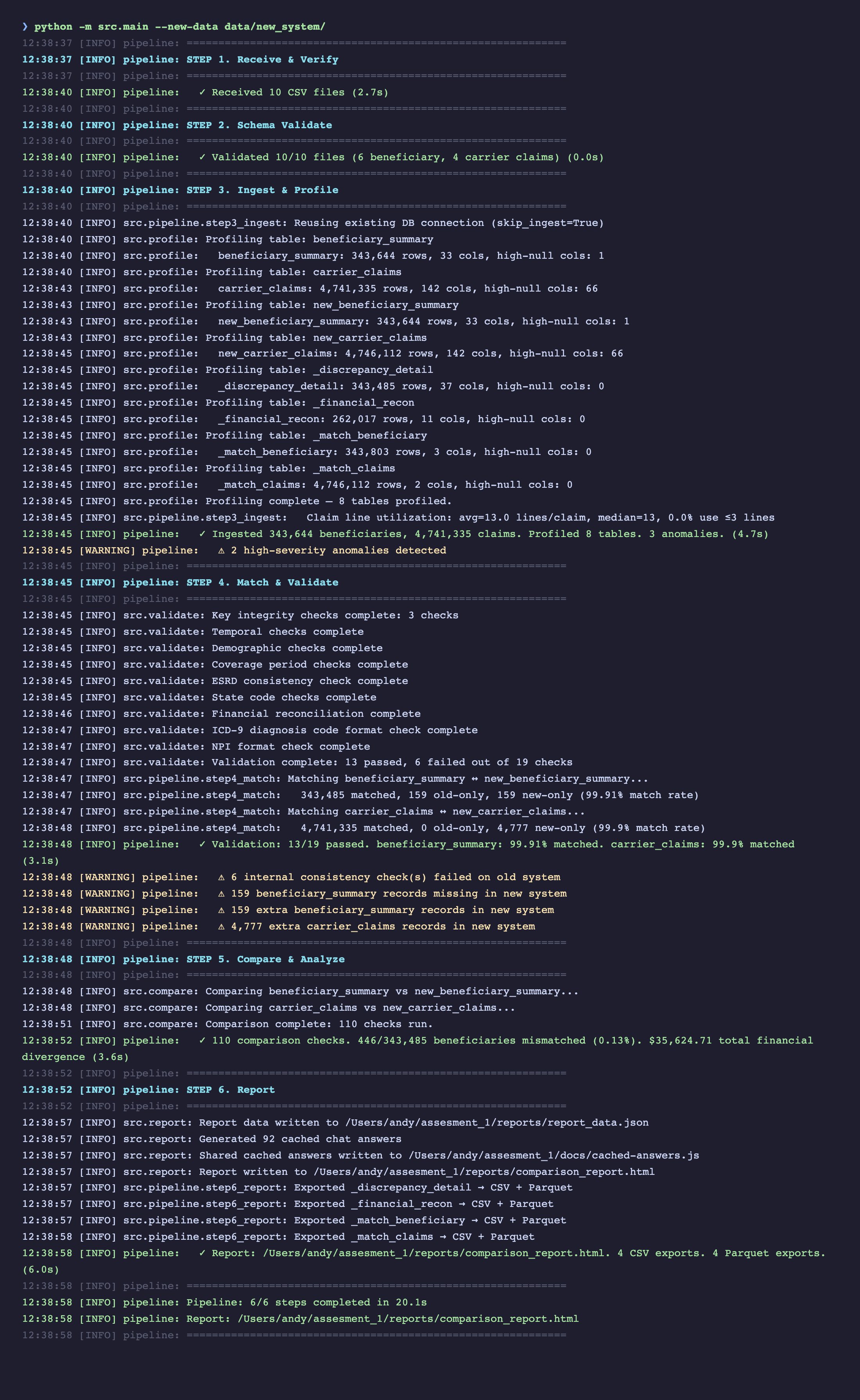

Pipeline Run Output

2. Test Suite

The project has 95 tests across two categories:

pytest tests/ -v

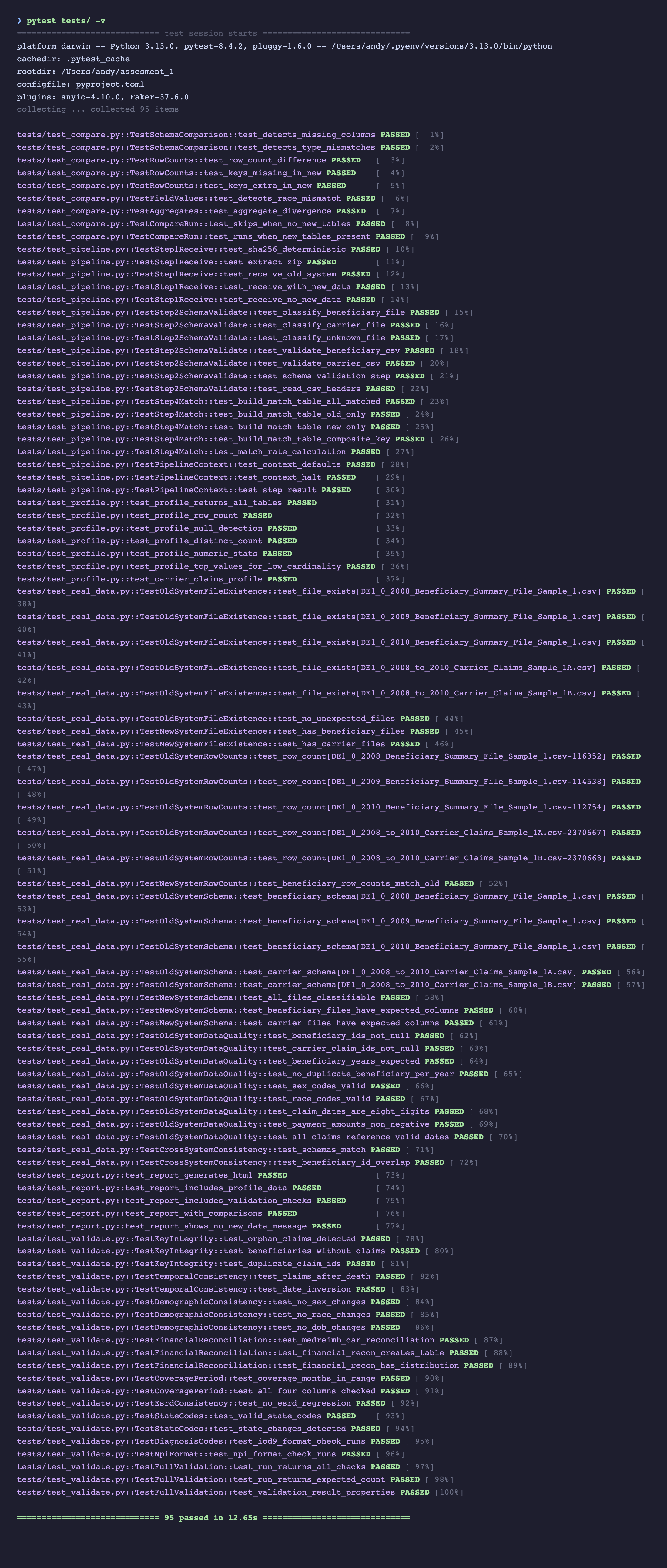

Test Suite Passing

3. The Report

Start the local server first (interactive charts, Schema Explorer, SQL Explorer, and Parquet Viewer require HTTP):

./scripts/serve.sh        # http://localhost:8888

Then open http://localhost:8888/reports/comparison_report.html — this is the primary deliverable. It's designed for progressive disclosure: KPIs first, then narrative, then detailed charts, then raw data.

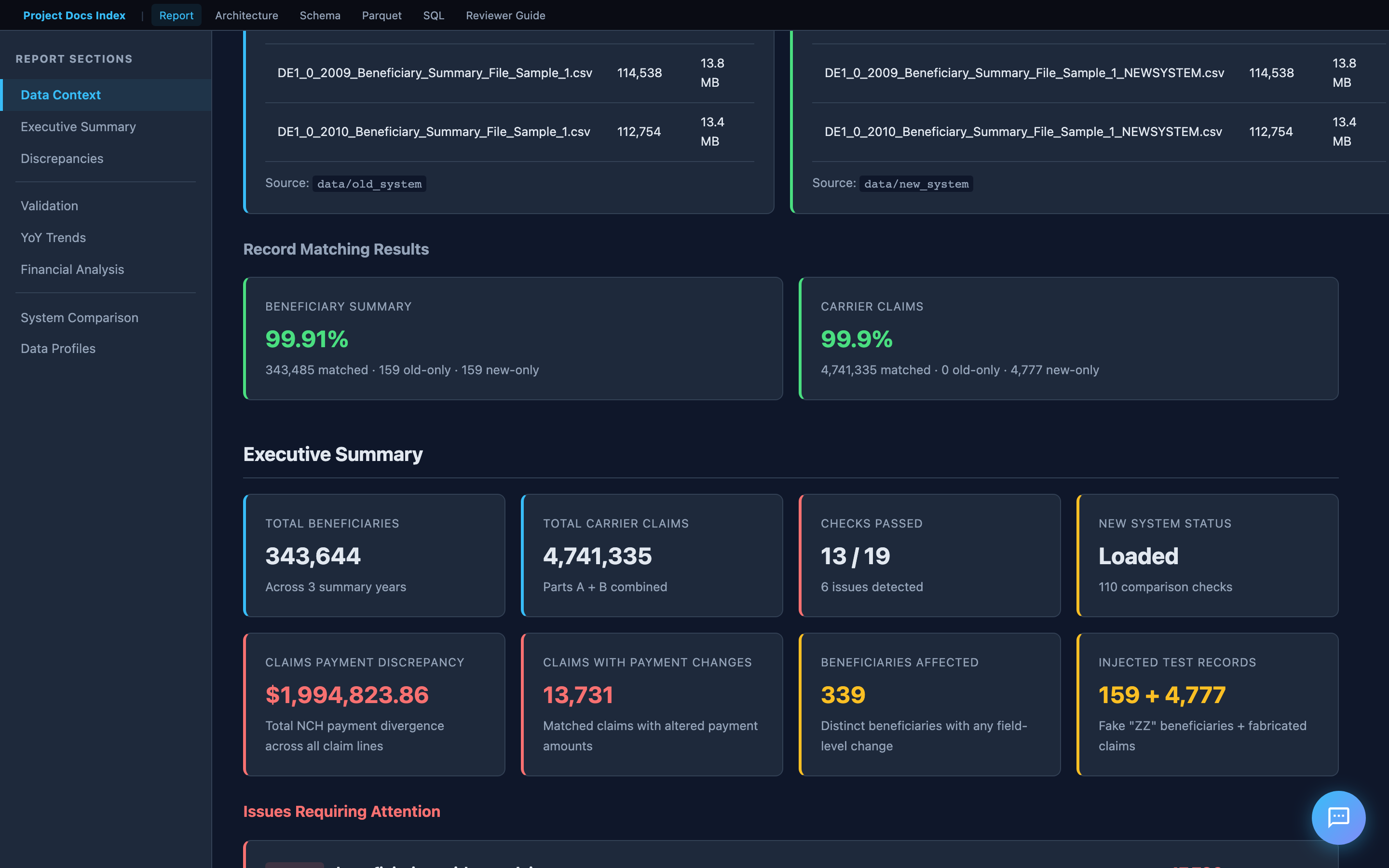

Executive Summary

The top of the report shows key metrics at a glance: total beneficiaries, total claims, matched/unmatched counts, and pass/fail indicators for each validation category.

A reviewer should be able to answer "what's wrong and how bad is it" within 10 seconds of opening the report.

Executive Summary

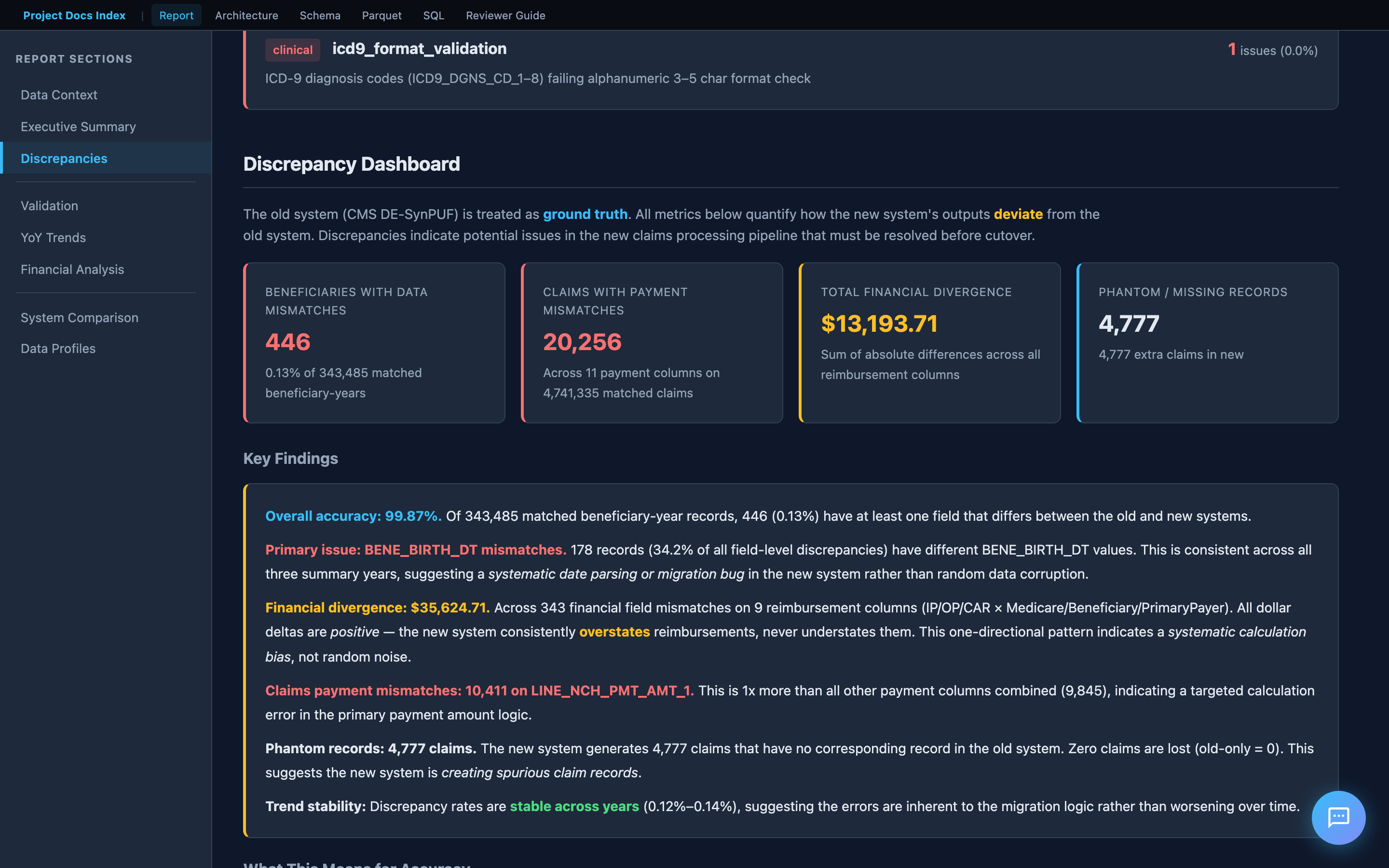

Key Findings

Below the KPIs is an interpretive narrative — not just numbers, but what they mean. This includes root cause hypotheses, risk assessment, and a clear recommendation on whether the new system is ready for cutover.

This section demonstrates domain understanding: the analysis is informed by the CMS codebook, not just the data structure.

Key Findings

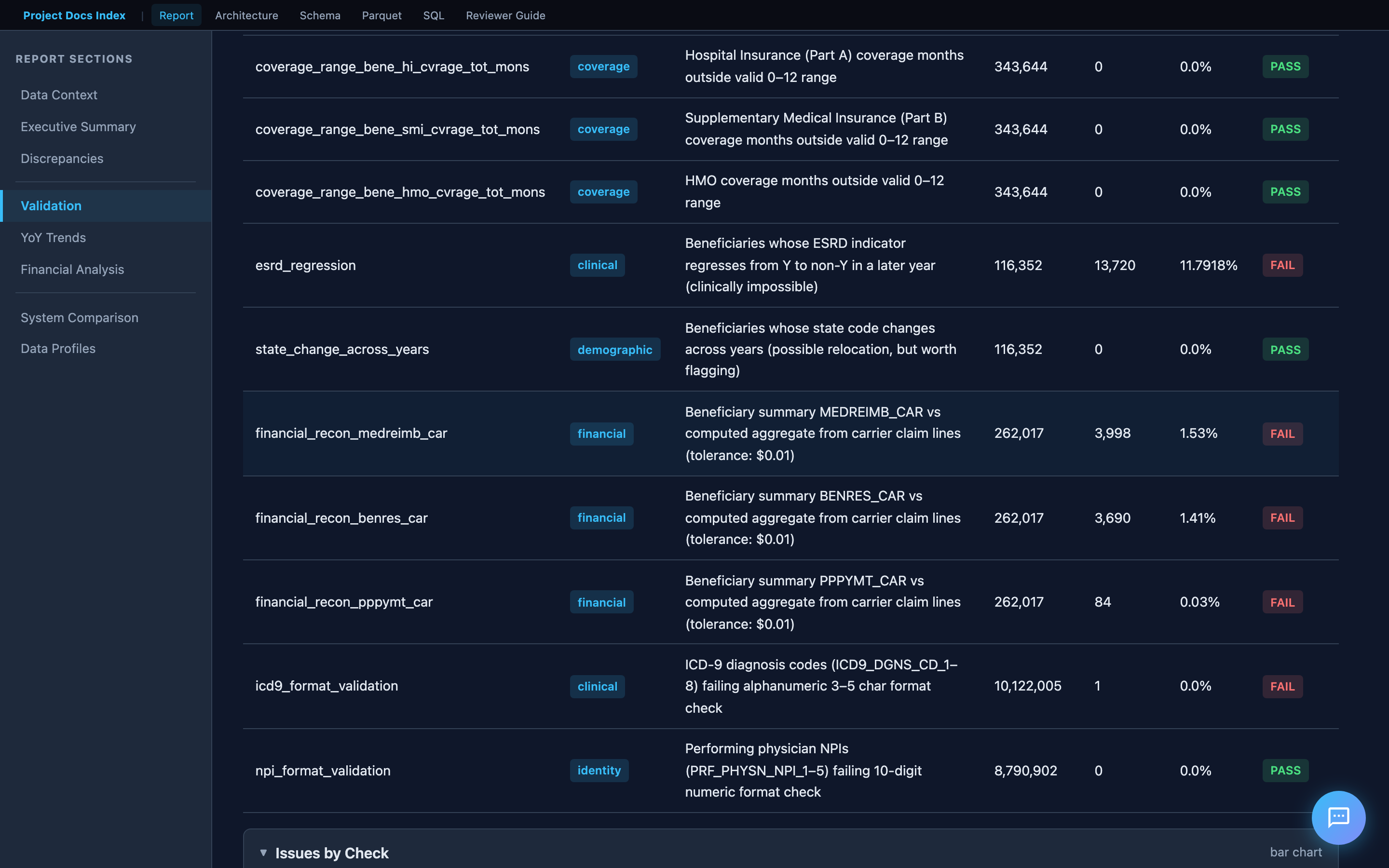

Validation Results

Internal consistency checks on the old system data. The bar chart shows issues found per check across four categories:

Category What it checks
Identity Orphan claims, beneficiaries without claims, duplicate claim IDs
Temporal Claims after death, date inversions (start > end)
Demographic Sex/race/DOB changes across years for the same beneficiary
Financial Carrier reimbursement reconciliation (MEDREIMB_CAR, BENRES_CAR, PPPYMT_CAR)

Validation Results

Financial Reconciliation

The financial reconciliation section deserves special attention. It compares beneficiary summary reimbursement totals against the sum of individual claim line items — the logic is derived from the CMS codebook (filtering on LINE_PRCSG_IND_CD values, summing LINE_NCH_PMT_AMT across 13 line items per claim).

This directly addresses the assessment requirement: "Total number of Claims whose payments don't match."

Financial Reconciliation

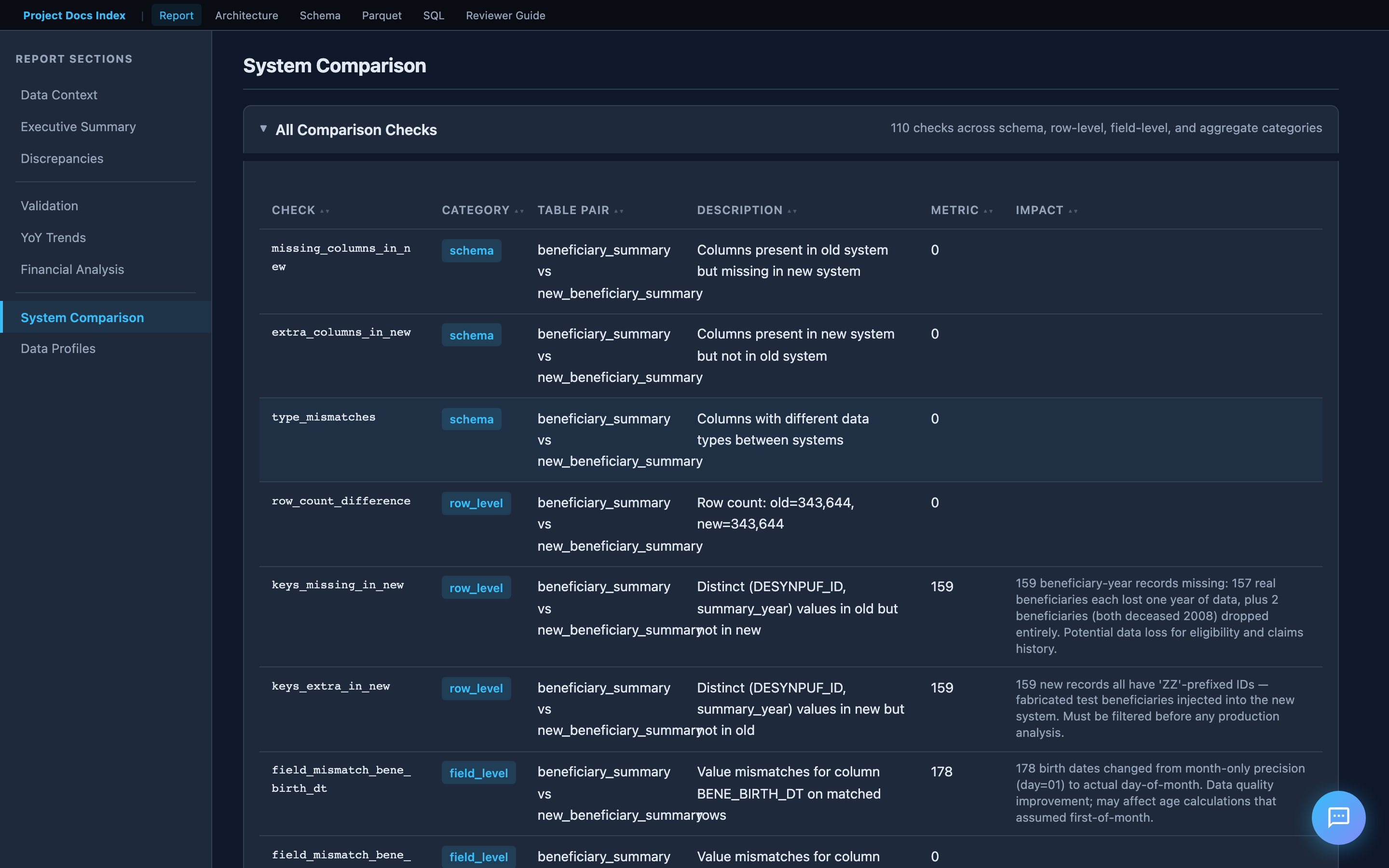

System Comparison (Old vs New)

When new system data is loaded, the report adds a comparison dashboard:

System Comparison

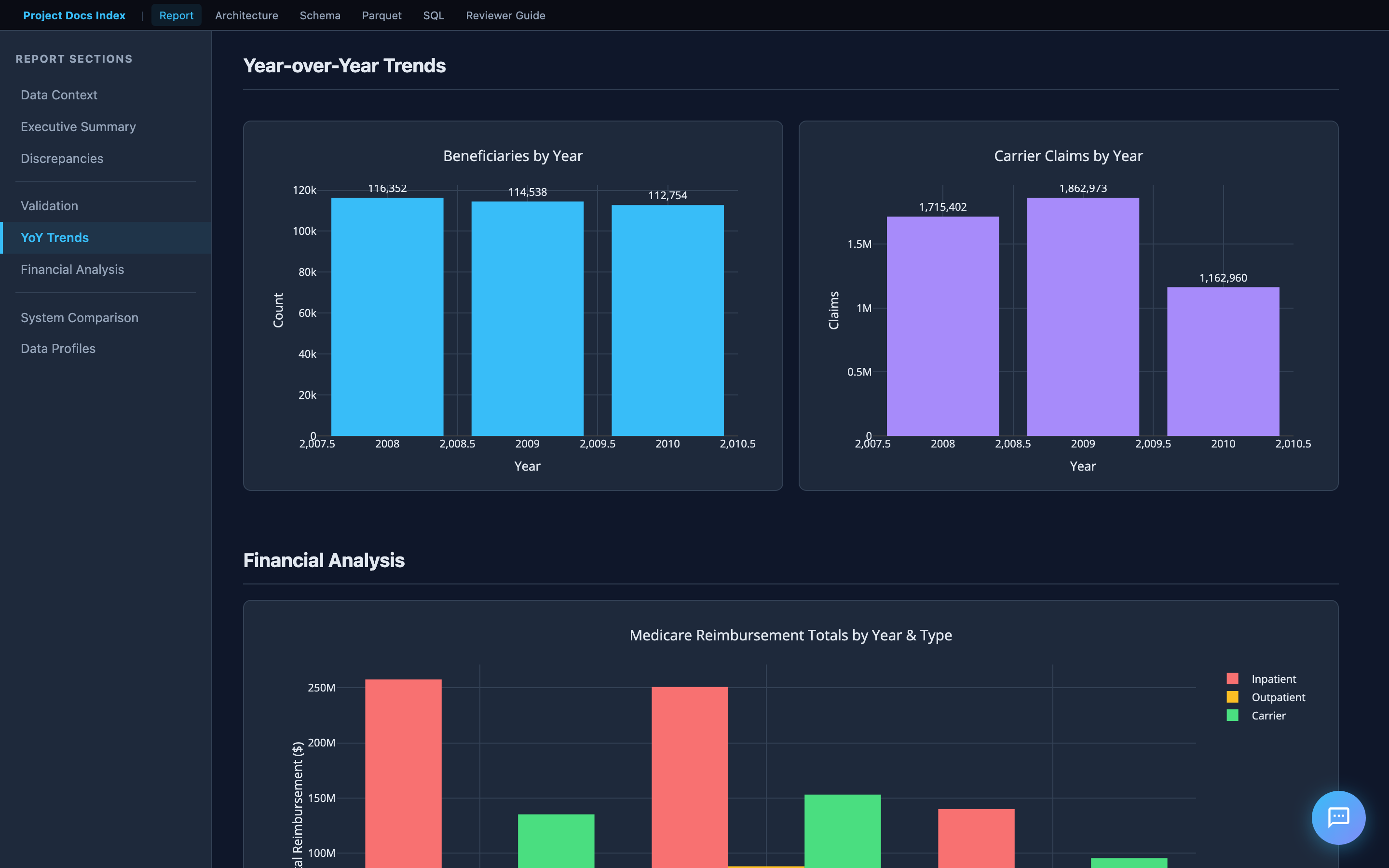

Interactive Plotly charts show how metrics change across 2008–2010. The assessment specifically asks to "identify any trends" — these charts surface patterns like increasing beneficiary attrition, financial drift, and seasonal claim volume shifts.

Year-over-Year Trends

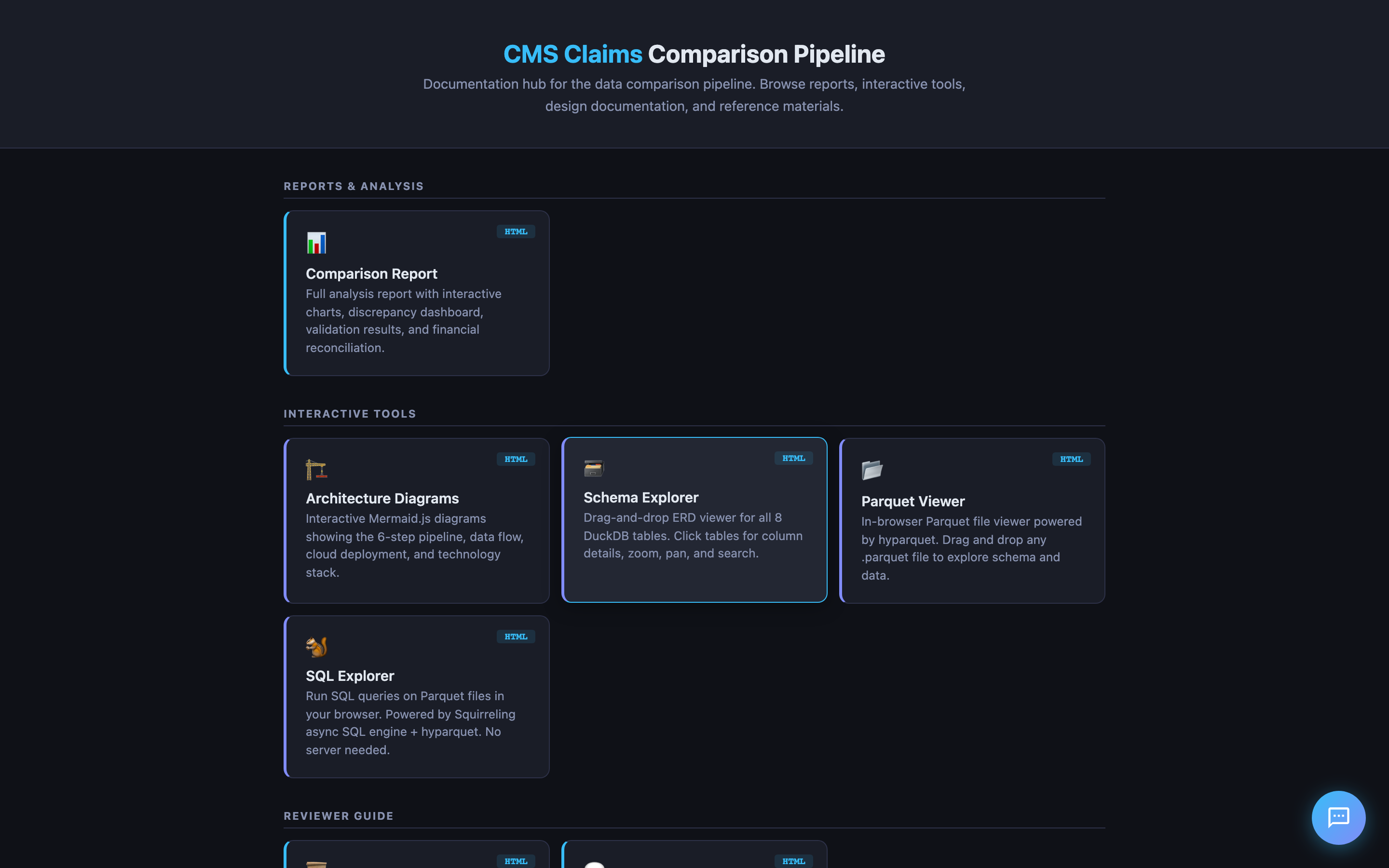

4. Documentation Hub

The project includes a documentation site with interactive tools and design documentation. When running via Docker, it's served at http://localhost:8888. Otherwise, open docs/index.html directly.

Landing Page

The hub links to everything: the comparison report, interactive tools, design documentation, and CMS reference materials (codebook, FAQ, data users guide).

Documentation Hub

Interactive Tools

The project includes several in-browser tools that require no server:

Tool What it does
Schema Explorer Drag-and-drop ERD viewer for all DuckDB tables. Click for column details.
Parquet Viewer In-browser Parquet file viewer (powered by hyparquet). Drag and drop any .parquet export.
SQL Explorer Run SQL queries on Parquet files in the browser. No server needed.
Architecture Diagrams Interactive Mermaid.js diagrams of the pipeline, data flow, and cloud deployment.

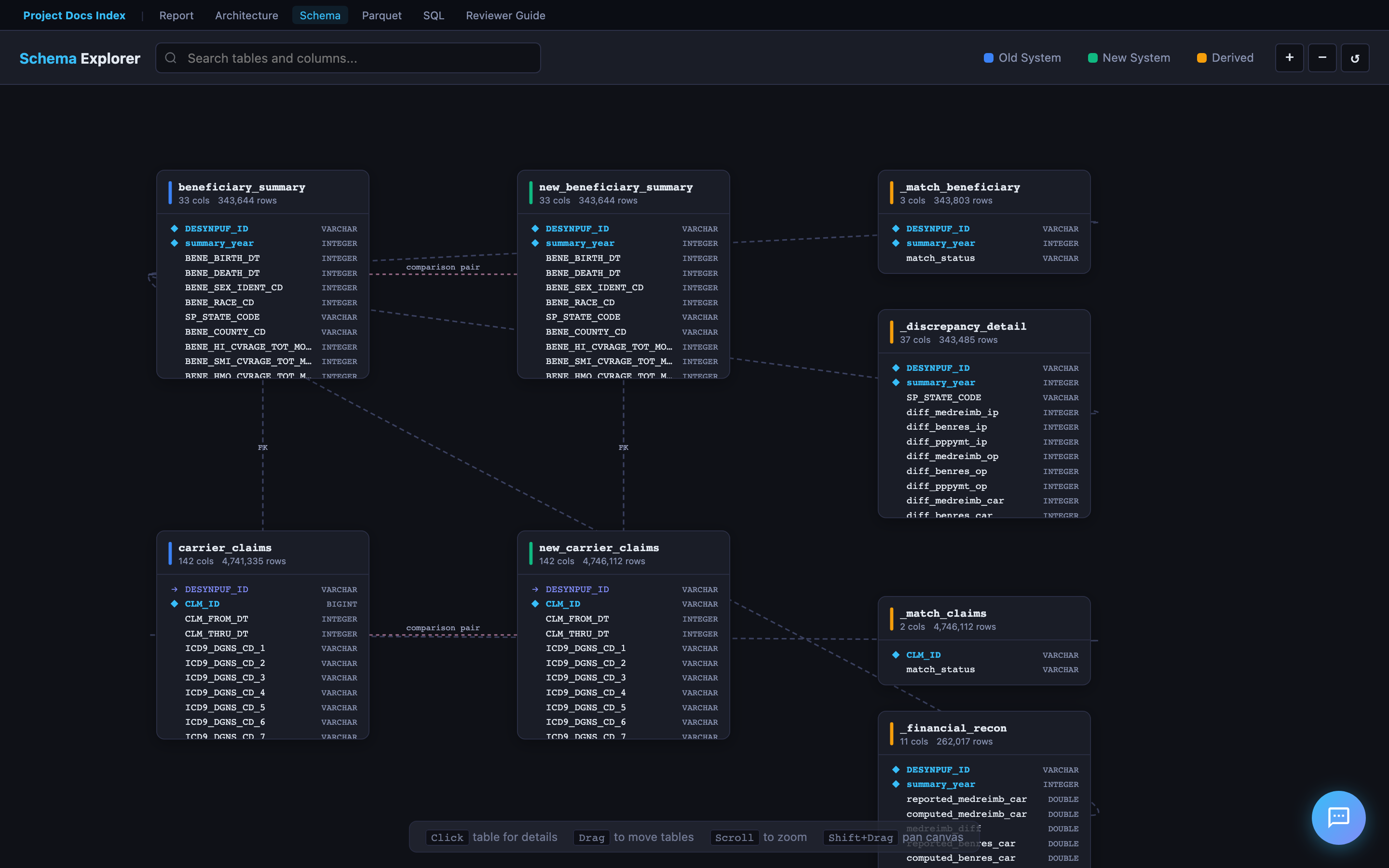

Schema Explorer

The ERD viewer renders all 8 DuckDB tables as draggable cards with column names, types, and foreign key relationships. Click any table to expand its full column details. Supports zoom, pan, and search.

Schema Explorer

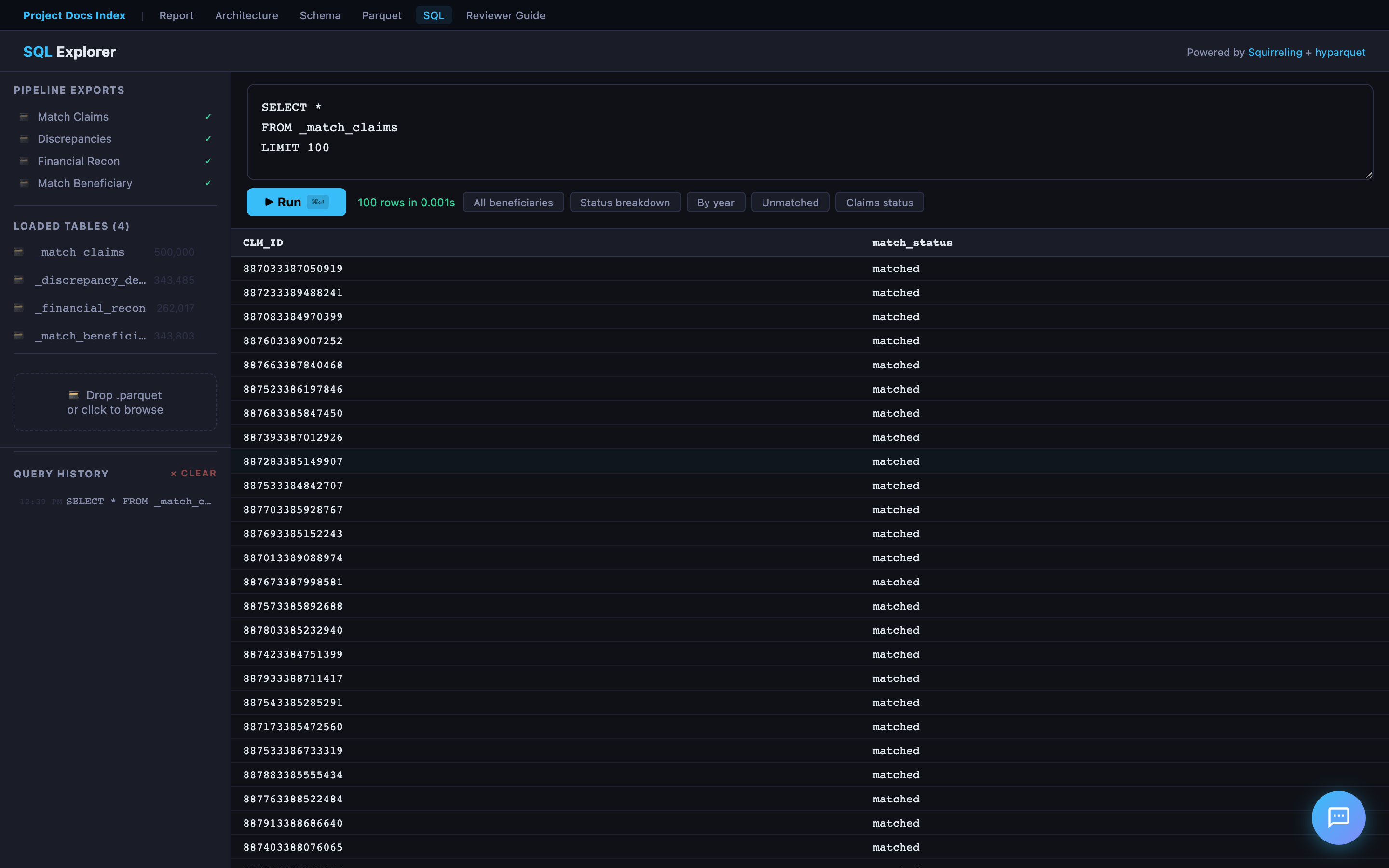

SQL Explorer

A browser-based SQL query editor powered by Squirreling's async SQL engine + hyparquet. Load any exported Parquet file and run ad-hoc queries — no server or database connection required. Includes sample queries to get started.

SQL Explorer

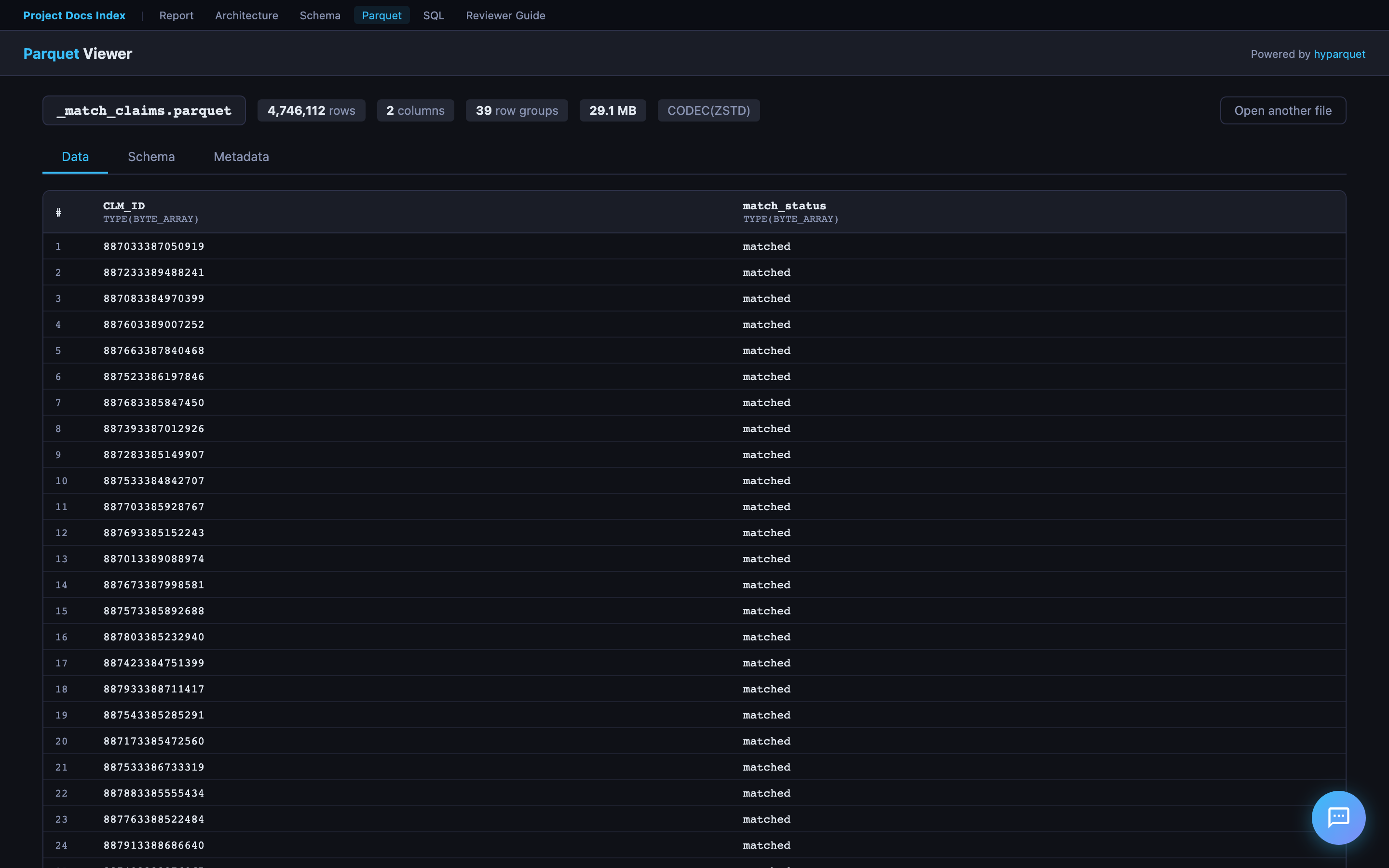

Parquet Viewer

Drag and drop any .parquet file to instantly view its schema (column names, types, row count) and preview the first N rows in a formatted table. Powered by hyparquet for fully client-side parsing.

Parquet Viewer

Report Pal (AI Chat Assistant)

Every page in the hosted report includes Report Pal — an AI assistant that helps reviewers explore findings through natural conversation.

How to Try It

  1. Open the hosted report
  2. Click the chat bubble in the bottom-right corner
  3. Choose Text (type questions) or Voice (speak naturally via WebRTC)

Text Mode

Voice Mode

Cached Answers — How They Are Generated

Every page loads docs/cached-answers.js — 92 pre-built Q&A pairs that provide instant responses without hitting the Lambda API.

Authorship: The answer text — the analytical narratives, conclusions, risk assessments, and Codebook references — was authored by Cascade (AI pair programmer) during development. Each answer is an f-string template in src/chat_answers.py where the prose is fixed and ~30 dynamic data points from the pipeline results are interpolated at build time. So the answers are AI-authored analysis with real pipeline data — not raw AI generation at runtime, and not purely hand-written either.

Generation flow:

  1. The pipeline runs all validation, comparison, and analysis checks
  2. Step 6 (src/report.py) calls generate_cached_answers() from src/chat_answers.py
  3. chat_answers.py extracts data points from pipeline results (match statistics, validation outcomes, trends, financial reconciliation, etc.)
  4. These are interpolated into the AI-authored f-string templates — producing Markdown answers with tables, bullet points, and CMS references
  5. Each answer is paired with relevant SQL queries (for the "Review SQL" button)
  6. The output is serialized to docs/cached-answers.js and loaded on every page before chat-widget.js

Question categories (organized by Bloom's Taxonomy level):

Level Example Count
6 — Create "Draft a go/no-go recommendation for the system migration" 5
5 — Evaluate "Based on the Codebook, which discrepancies represent true data corruption?" 5
4 — Analyze "Why does the 0.90 payment ratio affect all claim lines uniformly?" 4
3 — Understand "Can you explain the coverage period validation?" ~20
2 — Remember "What does BENE_HMO_CVRAGE_TOT_MONS mean?" ~7
1 — Retrieve "Which validation checks failed?" ~15

For anything not cached (or fuzzy match < 60%), the widget falls through to the Lambda API.

Lambda & Backend Functions

Report Pal relies on two Lambda backends. The source code is proprietary — only the hardcoded Function URLs are present in chat-widget.js.

1. Chat Lambda — Multi-Provider AI Proxy (LAMBDA_URL)

Proxies user questions to AI models with full DuckDB database access. Supports three providers — switch models from the chat widget's config drawer (hover over the bottom bar):

Provider Models Auth
OpenAI GPT-4o (default), GPT-4o Mini SSM API key
OpenRouter Claude Sonnet 4, Gemini 2.0 Flash, Llama 3.3 70B SSM API key
AWS Bedrock Nova Pro, Nova Lite, Nova Micro IAM role (no key)

All providers share the same system prompt (src/chat_prompt.py), DuckDB database, and query_database tool (up to 5 rounds of SQL execution per question). OpenAI and OpenRouter use the OpenAI Python SDK (OpenRouter with a different base_url). Bedrock uses the boto3 Converse API with the tool spec converted from OpenAI format.

The model selector persists your choice in localStorage — switch at any time, no setup required.

2. Session Lambda — Voice Token Generator (SESSION_LAMBDA_URL)

Thin proxy for WebRTC voice sessions — no data processing, no DuckDB:

  1. Retrieves OpenAI API key from SSM
  2. Calls OpenAI /v1/realtime/sessions → ephemeral token (expires 60 seconds)
  3. Browser uses token to connect directly to OpenAI Realtime API (gpt-4o-realtime-preview-2025-06-03)
  4. Voice session configured via session.update: condensed Report Pal prompt, coral voice, server-side VAD, whisper-1 transcription

The Session Lambda source code is a standalone deployment (not in this repository).

Security

Code Reading Order

For reviewers who want to understand the code:

Order File Lines Why
1 README.md — Entry point: Quick Start, architecture, project structure
2 FEEDBACK.md — Approach rationale, skills demonstrated
3 src/pipeline/__init__.py ~50 Defines PipelineContext and StepResult — the pipeline's data model
4 src/pipeline/runner.py ~40 The 6-step orchestrator with gate logic
5 src/validate.py — Deepest analytical work: financial reconciliation SQL, temporal checks
6 src/compare.py — Old-vs-new comparison engine
7 src/report.py — HTML report generation with Plotly charts
8 src/chat_prompt.py ~130 Shared Report Pal system prompt and OpenAI tool definitions
9 docs/chat-widget.js ~1600 Self-contained AI chat widget (text + WebRTC voice)
— docs/cached-answers.js (generated) 92 pre-built Q&A pairs loaded on all pages (auto-generated by pipeline)
10 tests/conftest.py ~160 How test data is designed with intentional edge cases
11 docs/SOLUTION.md — Design decisions explained in prose
12 docs/REQUIREMENTS_TRACEABILITY.md — Maps every spec requirement to its implementation

Assessment Requirements Mapping

Spec Requirement Where to Find It
Ingest and clean the data src/ingest.py, pipeline Step 3
Build a simple ETL pipeline 6-step pipeline (src/pipeline/), DuckDB (data/database/)
Identify and quantify discrepancies Report: Validation Results, System Comparison
Identifiable trends Report: Year-over-Year Trend Charts
Total number of Beneficiaries whose data does not match Report: Executive Summary KPIs
Total number of Claims whose payments don't match Report: Financial Reconciliation
Generate a report reports/comparison_report.html — interactive HTML with charts
Source code All in src/, tests/, cloud/, infra/
Screenshots screenshots/ directory
README.md This file + README.md
FEEDBACK.md FEEDBACK.md

Key Design Decisions

  1. DuckDB over Pandas — SQL is clearer for the complex joins and aggregations in financial reconciliation. DuckDB handles the 2.4 GB carrier claims files without memory pressure and requires no server.

  2. 6-step pipeline with gate logic — each step is independently testable and can halt early. This mirrors production data pipeline design.

  3. Report for communication — executive summary and failed checks upfront, interactive charts for trends, data profiles as reference material. Designed for both technical and non-technical audiences.

  4. Docker for portability — docker build && docker run runs everything on any machine.

  5. 95 tests — 62 synthetic (no data needed) + 33 real-data validation. Tests cover every pipeline step and core module.

  6. Flexible file discovery — the pipeline discovers CSVs by column headers, not filenames. Works with any of the 20 CMS DE-SynPUF samples without code changes.
